Project Description
Automatic Paper Bag Making Machine For Shoe Clothes Bag SY-220
Feature:
- This machine is is the ideal equipment to take the flat papers with original colors or printed well as raw materials to make into paper bags with square bottoms.
- Application paper materials: Brown paper, copperplate paper, white-plate paper etc (including laminting paper)
- Its technique process is about: the flat papers after printing are delivered into the driving parts for positioning through automatic paper feeder and press line with rolling press device
- then make one-side glue, folding and positioning and sticking and conveying device will convey them into the bottom position and conduct press horizontal line
Paper Bag Sketch Map:
Working Procedure:

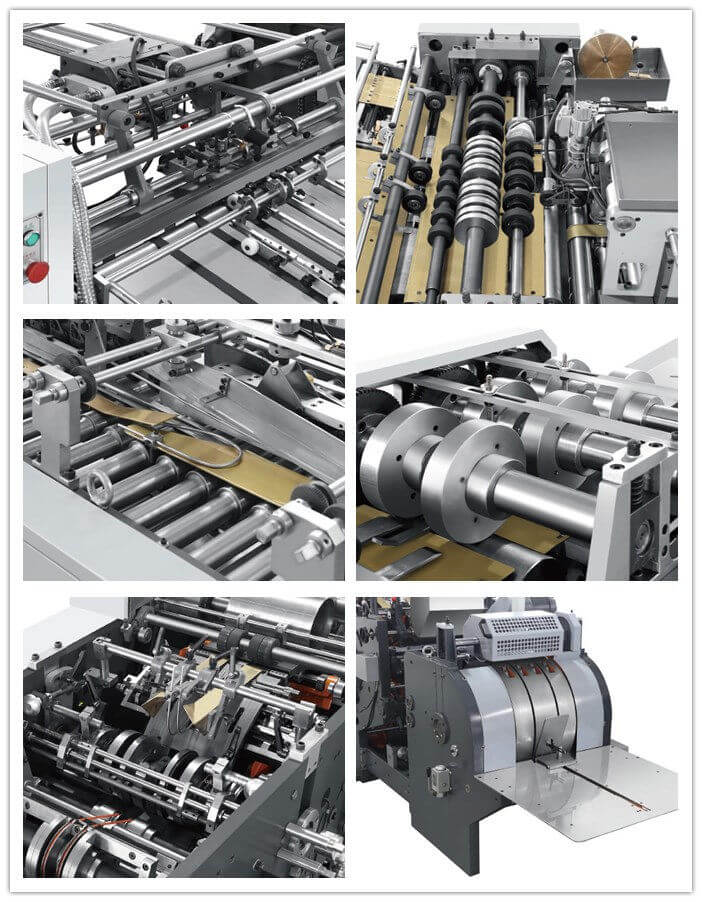

Machine Detail:
Technical Parameter:
Width scope of bag face | 110-220mm/4.33-8.66inch |
Organ height | 50-120mm/1.97-4.72 inch |
Canister length of the paper bag | 220-440mm/8.66-13.72 inch |
Paper width | 320-700mm/12.59-27.56inch |
Paper length | 220-440mm/8.66-13.72inch |
Paper weight range with unit | 80-157g |
Product speed | 60-100pieces/min |
Glue type | Watery glue |
Total power | 8KW |
Total weight | 10T |
Overall Dimension (L×W×H) | 11100×1500×1600mm |
1 Q:What is the machine warranty?
A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.
2 Q:What is the delivery time?
A:15-30days after get the payment.
3 Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
4 Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
5 Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
6 Q:Who is going to install the equipment?
A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.
7 Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
