Project Description

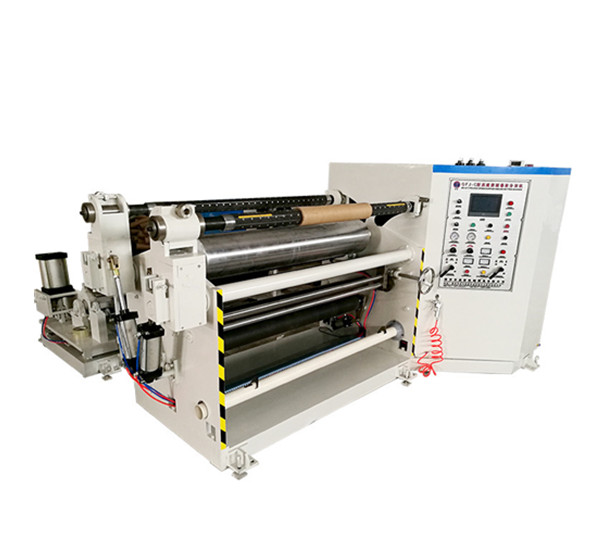

Slitting Rewinding Machine QFJ C Series(300meters/min)
Feature:
- This machine is Suitable for drinking straw paper,Composite Material and Aluminium Foil
- The machine use center winding and the surface drum rewinding .
- Web guide system, automatic tension control system with magnetic powder brake and clutch device
- Machine with meter counter , automatic stop

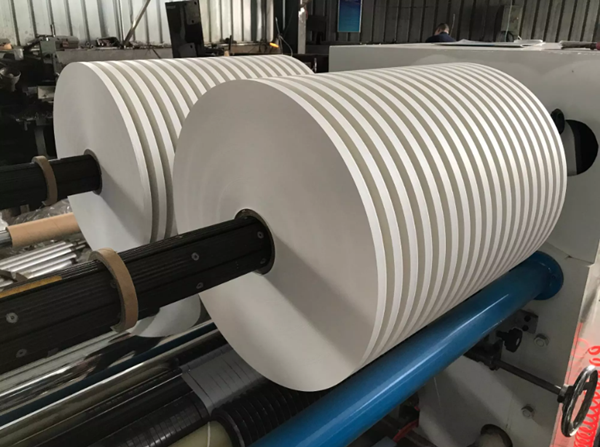

Sample:
Technical Parameter:
| Model | QFJ-C800 |
| Max. Width of roll material | 700mm |
| Max. Diameter of roll material | 1200mm |
| Max. Diameter of rewinding roll | 800mm |
| Min. Width of splitting | 10mm |
| Slitting Speed | 0-300m/min |
| Air shaft diameter | 3in |
| Rewind shaft diameter | 3in |
| Precision of web guiding | ±0.3mm |
| Total Power | 13.5kw |
| Overall dimension ( L x W x H mm) | 2800×2100×1550 |
| Weight | 2000kg |
1 Q:What is the machine warranty?
A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.
2 Q:What is the delivery time?
A:15-30days after get the payment.
3 Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
4 Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
5 Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
6 Q:Who is going to install the equipment?
A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.
7 Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
