Project Description

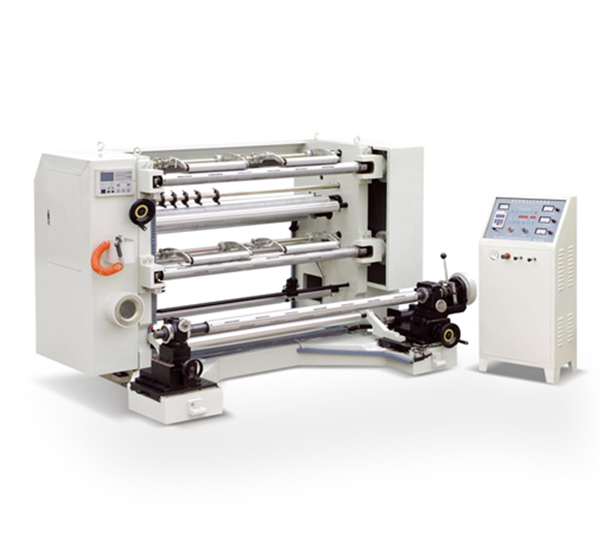

Automatic Vertical Type Slitting & Rewinding Machine DSY-1300
Feature:
- This machine is suitable for slitting and rewinding such various roll materials as BOPP, PET, CPP, CPE, PVC, aluminum foil laminated with film and paper, etc.
- And can cut edge, separate and cut material according to different requirements during production.
- Main Motor equipped with inverter for speed regulation.
- Separated General Control Cabinet, more flexible and even easier operation.
- Automatic EPC for unwinding, photocell is suitable for tracking the edge and/or the line of material.
- Equipped with air shaft for unwinding material loading, magnetic powder brake and auto tension controller
- Air shaft for rewinding (frictional cam shaft available for option), Magnetic powder clutch for rewinding tension control
- Equipped with air trim discharge conveying system.
- Automatic meter counting device.
- Pressure roller for rewinding to make rewinding roll more uniform.
- Disk knife available for option.
Across membrane chart:
Technical Parameter:
| Model | DSY-1100 | DSY-1300 |
| Max.Width of Mother Roll | 1100MM | 1300mm |
| MAX.Diameter of Mother Roll | Φ600mm | Φ600mm |
| Max diameter of rewind roll | Φ450mm | Φ450mm |
| Core diameter | Φ76mm | Φ76mm |
| Width of Final Roll | 50-1100mm | 50-1300mm |
| Slitting and Rewinging Speed | 5-160m/min | 5-160m/min |
| Accuracy | ±0.5mm | ±0.5mm |
| Total Power | 3.7kw | 3.7kw |
| Weight of Machine | 1700KG | 1900kg |
| Overall Dimension | 2700×1370×1530mm | 2700×1570×1530mm |
1 Q:What is the machine warranty?
A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.
2 Q:What is the delivery time?
A:15-30days after get the payment.
3 Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
4 Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
5 Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
6 Q:Who is going to install the equipment?
A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.
7 Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
