Project Description
Four Six Corner Box Folding Gluing Machine DSK-G Series
Feature:
- Suitable for straight-line, crash-lock bottom, double wall, 4 & 6-corner boxes

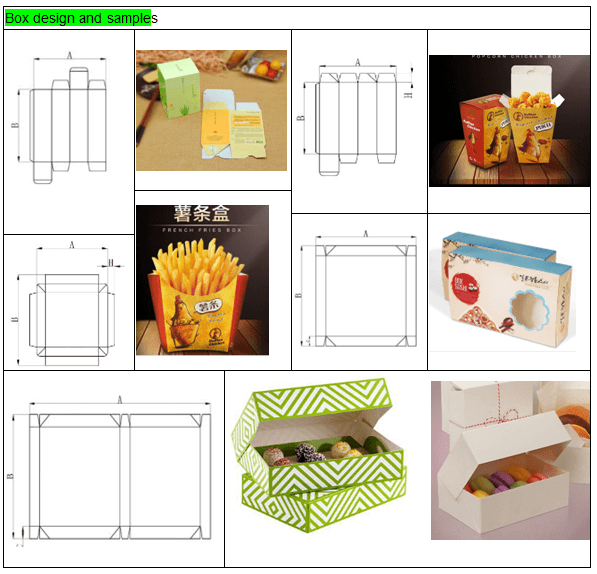

Sample:

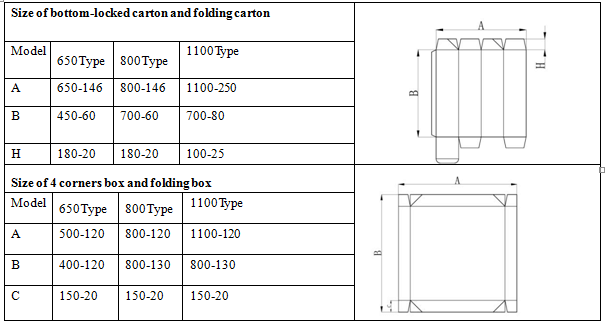

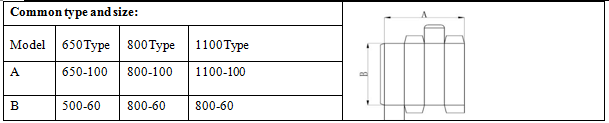

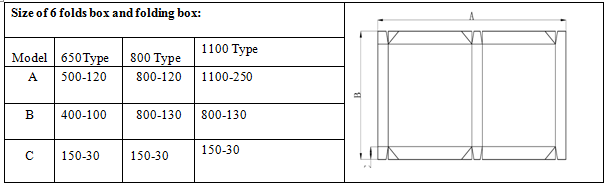

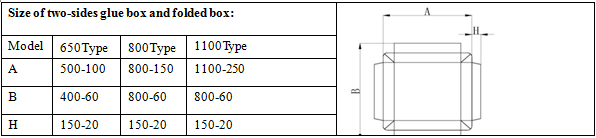

Glued Box Type And Size:

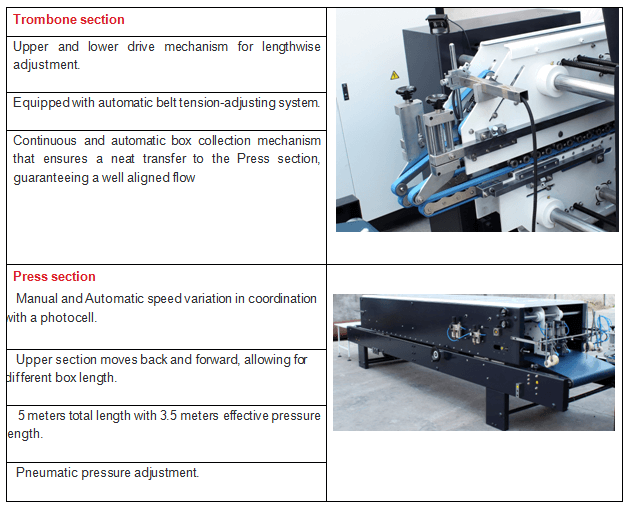

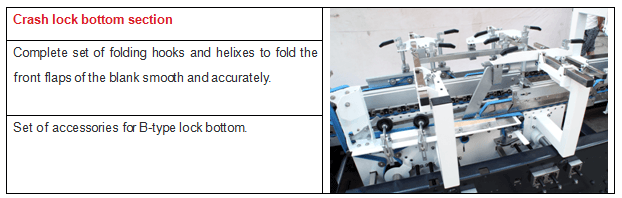

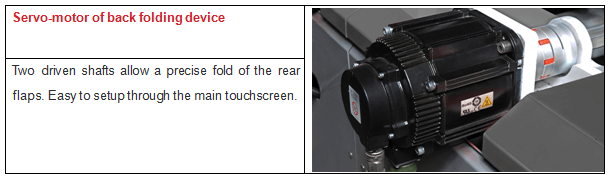

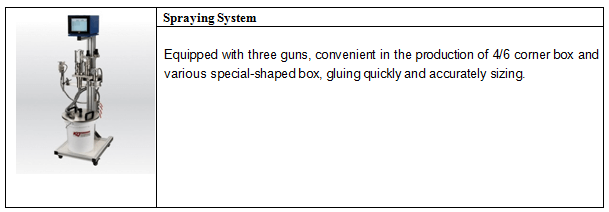

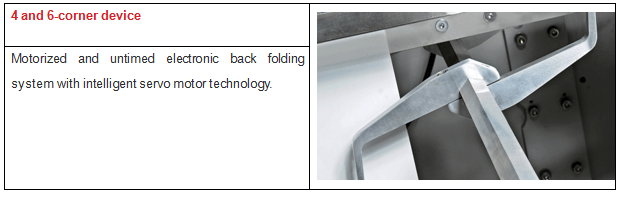

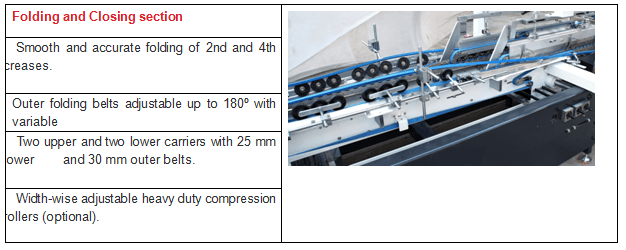

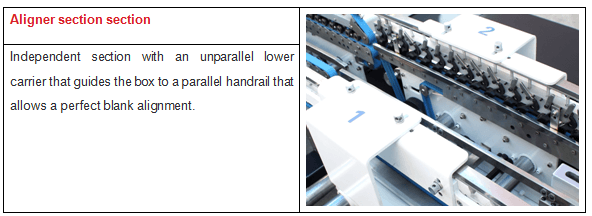

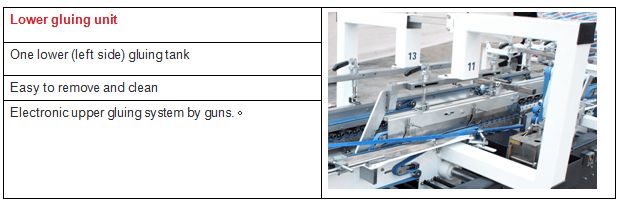

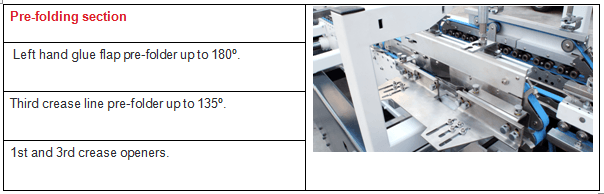

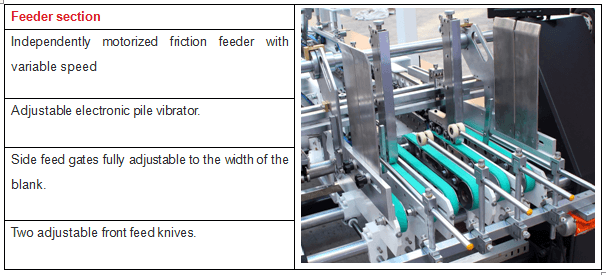

Machine Section:
Technical Parameter:
| G SERIES | 650 | 800 | 1100 |
| Carton board max | 800 gsm | 800 gsm | 800 gsm |
| Corrugated flute type | N, E & F | N, E & F | N, E & F |
| Speed max | 400 m/min | 400 m/min | 400 m/min |
| Inching speed | 10 m/min | 10 m/min | 10 m/min |
| Thickness of folded box max | 12 mm | 20 mm | 20 mm |
| Blank width | 650 mm | 800 mm | 1100 mm |
| Length*Width*Height | 12*1.4*1.8m | 16.5 *1.4*1.8m | 16.5*1.7*1.9m |
| Net Weight | 4T | 6.6T | 7.6 T |
| Electrical connected load | 12 kW | 15 kW | 15 kW |
| Compressed air | 6 bar | 6 bar | 6 bar |
| Air compressor capacity | 10 m³/h | 10 m³/h | 10 m³/h |
| Air tank capacity | 60 L | 60 L | 60 L |
1 Q:What is the machine warranty?
A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.
2 Q:What is the delivery time?
A:15-30days after get the payment.
3 Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
4 Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
5 Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
6 Q:Who is going to install the equipment?
A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.
7 Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
