Project Description
Auto High-Speed Bottom Lock Gluing Folding Machine DSK-650CA
Feature:
- DSK-650CA auto high-speed bottom lock gluing folding machine.Upper gluing bucket can be adjusted separately up/down, right/left, to ensure the gluing quality.
- Bottom gluing bucket can be adjusted right and left,set gluing amount, east to assemble, disassemble and clean.
- Product is special-shaped like fries chips box, then it needs spraying system

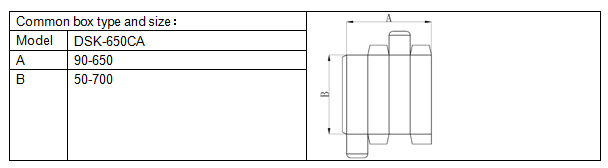

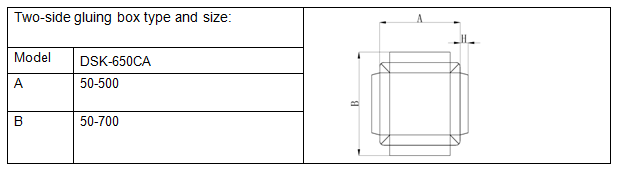

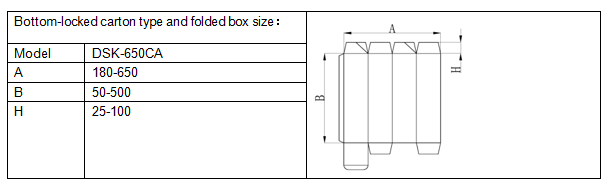

Applicated Box Type and Size:

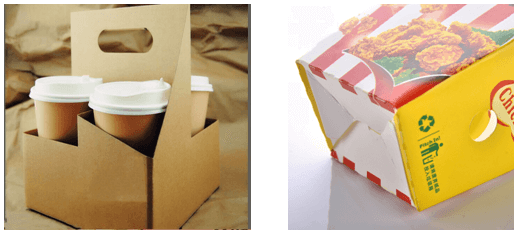

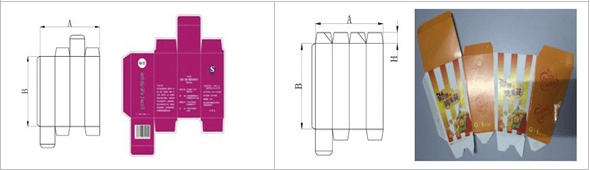

Sample:

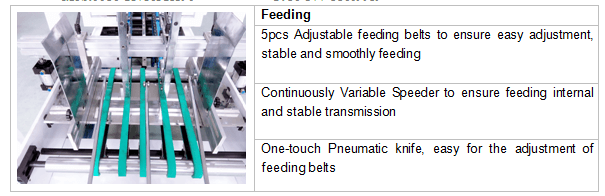

Section Introduction:

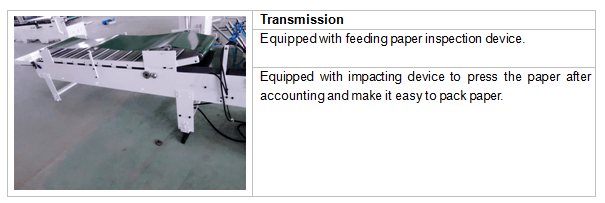

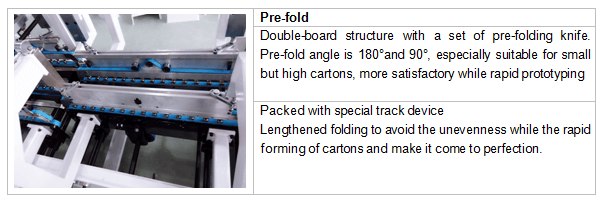

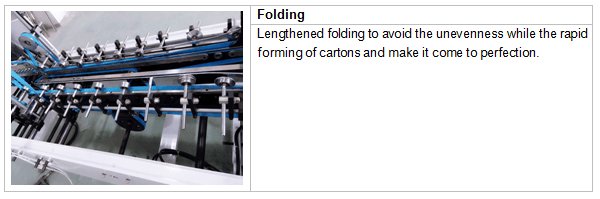

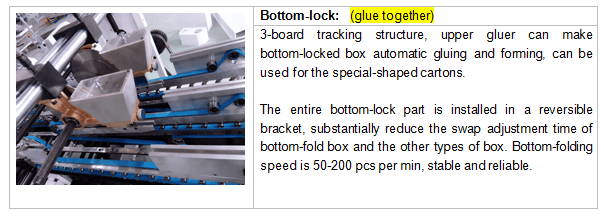

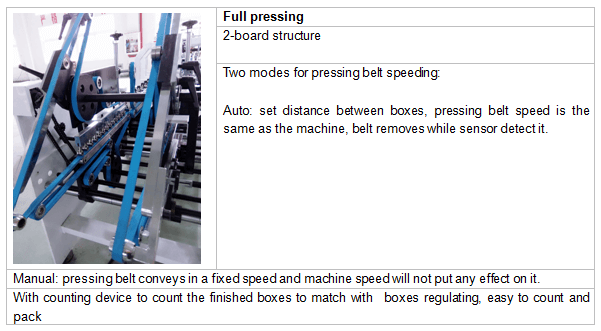

The Machine consists of 6 sections: feeding, pre-folding, bottom locking, folding, full pressing and press.
Technical Parameter:
| Model | DSK-650CA |
| Paper Material | Cardboard250-700g |
| Max. Liner speed | Max. 220 meter/minute |
| Feeding way | Automatically and continuously feeding |
| Way of folding | Fold 1 and fold 3 are 180° Fold 2 and fold 4 are 90°and 180° Bottom folded and glued |
| Glue Material | Water-base cold glue |
| Electric power | 6.0kw 380v |
| Weight | 3.0T |
| Over dimension | 8.45x1.3x1.45 |
1 Q:What is the machine warranty?
A: One year. We will provide maintenance support for any issue with the equipment. If the equipment are still under warranty, we will replace and repair the faulty parts free of charge and buyer will only need to pay for the shipping or air charges. In general we are able to ship the faulty party that are in stock within 1 day.
2 Q:What is the delivery time?
A:15-30days after get the payment.
3 Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
4 Q:Do you inspect machines before packing?
A:Of course we do.we have QC department to debug the machine before packing
5 Q:What’s the payment term?
A:T/T 30% in advance, the balance paid before delivery. We also accept payment via West Union and L/C.
6 Q:Who is going to install the equipment?
A:Generally, as a buyer you will visit our factory for equipment training and installation but if needed we could also visit buyer’s factory. Buyer only need to pay for return air ticket and lodging expenses.
7 Q: Do you accept factory visiting?
A: We are highly greeting for your visiting.
